★toyota30Alphard/Vellfire How to disassemble the sliding door japan saga kyowaauto

 30Alphard how to the disassemble the sliding door

Remove interior and exterior and exterior parts

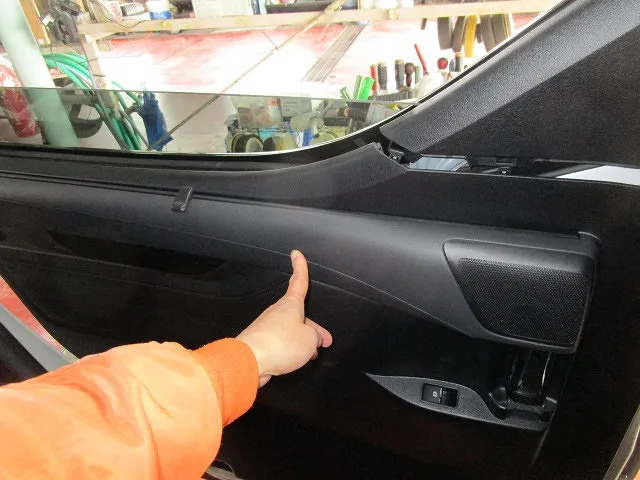

 Before removing the main interior

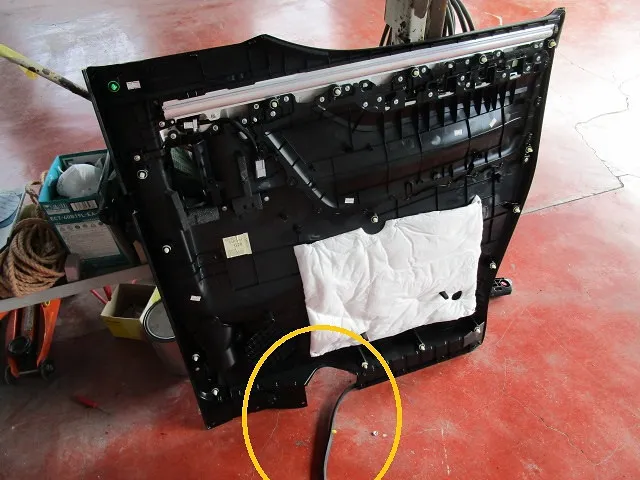

First,remove the rubber molding at the bottom of the interior

Then lock the door

After that,you can remove it by pulling the interior

There are no fixing screws.

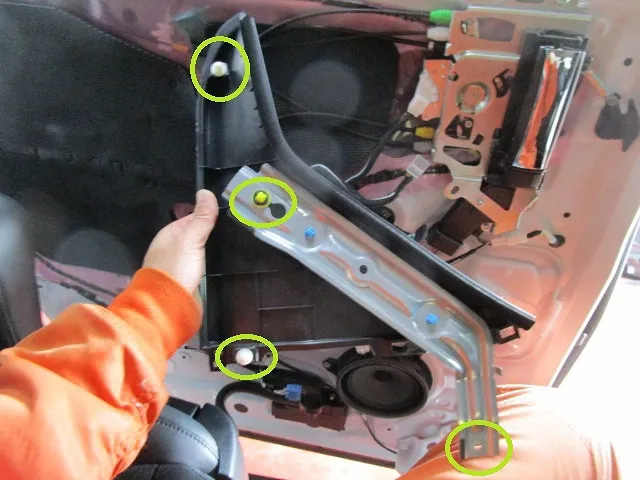

 Remove the front garnish

First,remove this screw

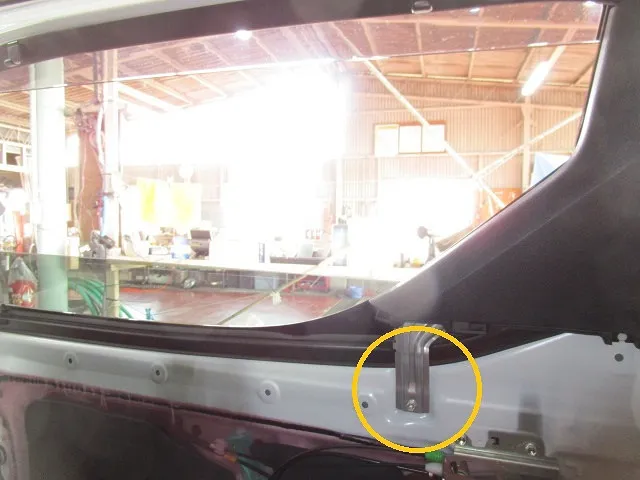

pull out the metal stay

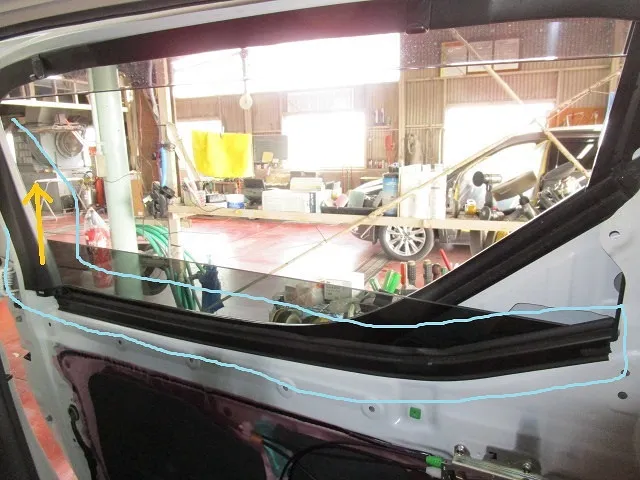

 Inner glass mall

Pull out while raising the integrated glass molding

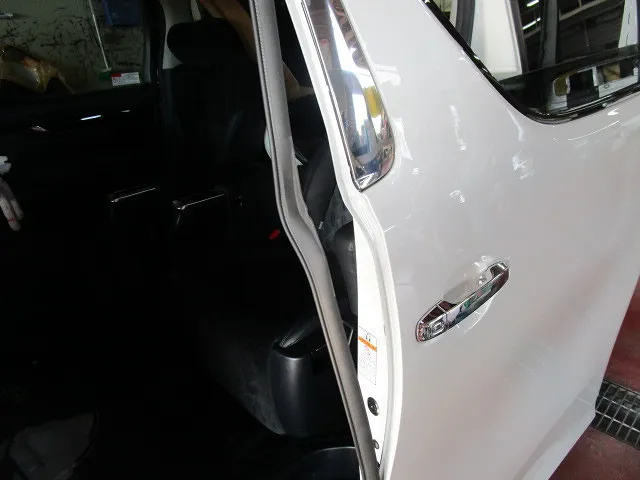

 Anti-pinch rubber

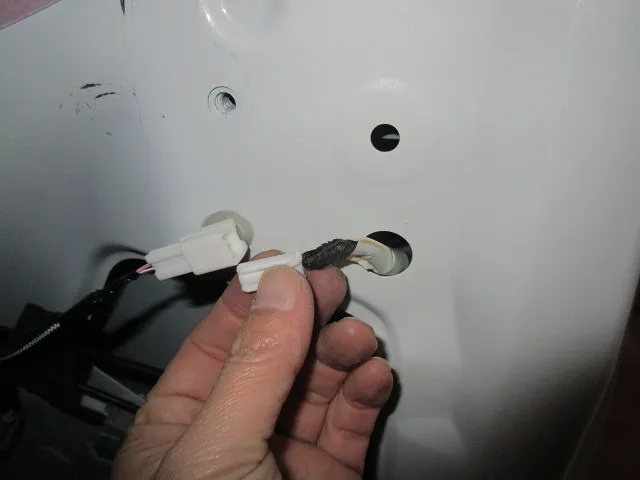

Remove this connector and remove the pinch prevention rubber

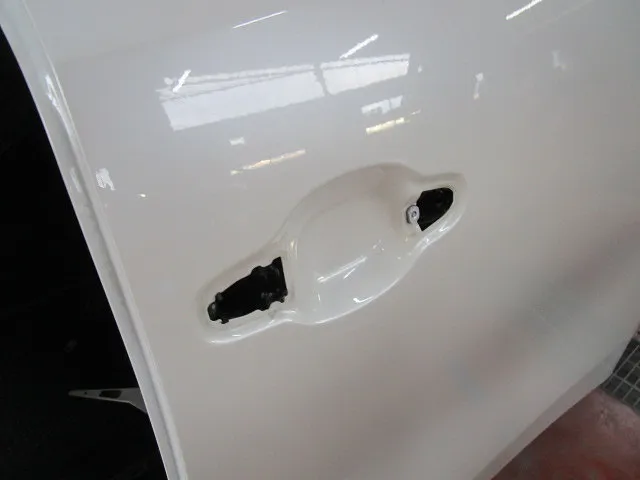

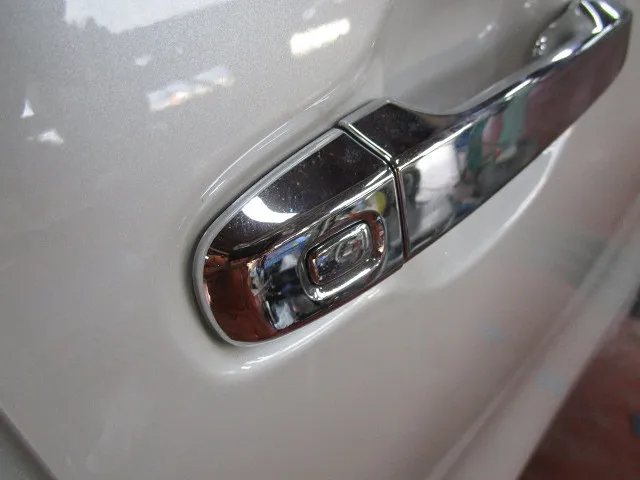

 Remove the external door handle

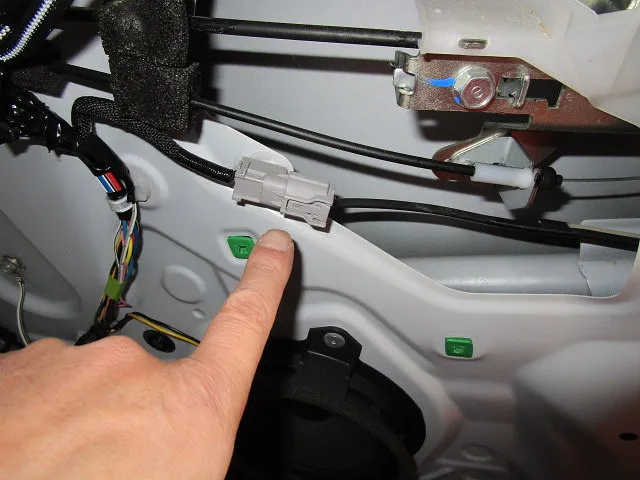

First remove the connector,
then remove the bolt from the side to remove the switch base.

Pull out the main lever diagonally backward.

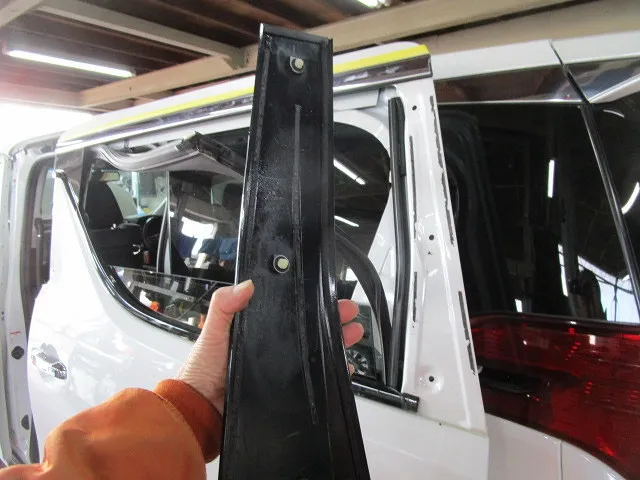

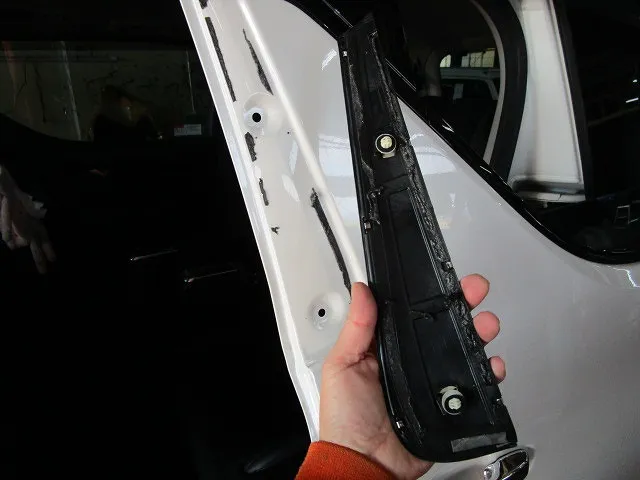

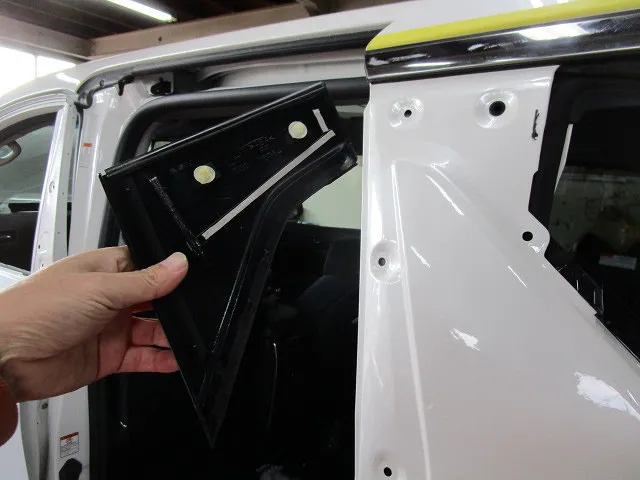

 Exterior parts of each part

All are fixed with resin pins and double-sided tape,not screw fixing.
